R&D Engine Mounts - Compression Mountings No. 2
Regular price
£0.00
£137.24
Description

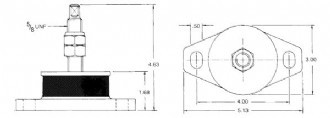

The R&D Compression Mount is a low height mounting with minimum deflection.
| Part No. | Capacity (lbs) | Deflection (ins) |
|---|---|---|
| 800-003 | 100-180 | .09 |
| 800-004 | 160-370 | .09 |
| 800-005 | 320-500 | .09 |
| Pre-loaded .06 | ||
Height adjusting nut thickness: 0.55
R & D Marine Engine Mounts
R & D Marine has developed a comprehensive range of fail safe competitively priced Engine Mountings to fit all major installations. Shear mountings are available where good isolation is required and compression mounts where there is a restriction on the available space. Installation is made as quick and easy as possible with slotted holes and heightadjusting studs to simplify alignment.
Features:
-
Good vibration isolation
-
Fail safe design
-
Will withstand roll over test
-
Accepts propeller thrust
-
Pre-loaded
-
Slotted holdes to assist alignment
-
Height adjusting to simplify alignment
-
Fast installation time
