Description

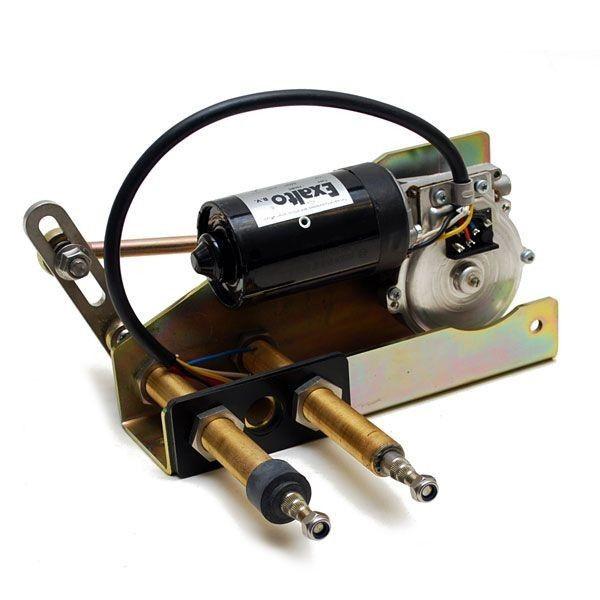

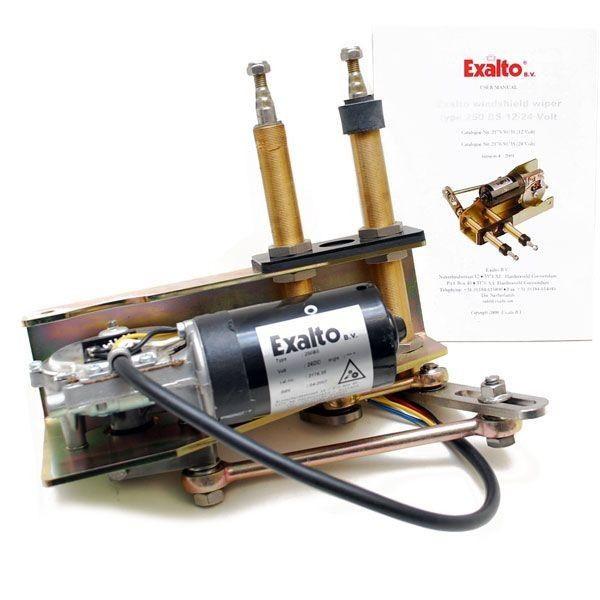

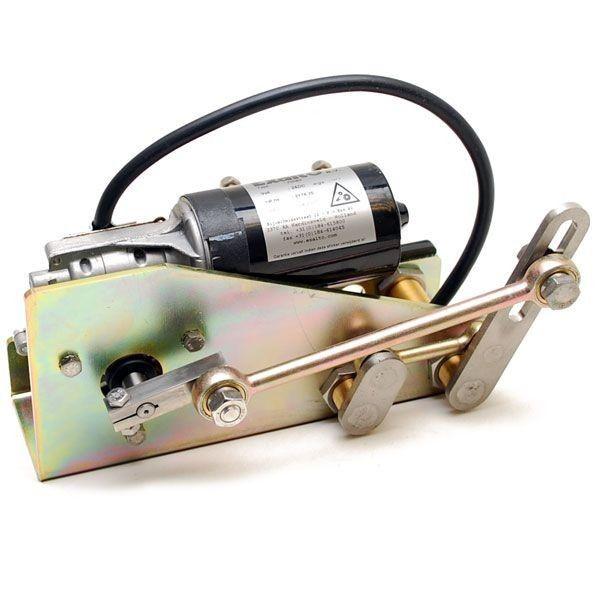

The Exalto 250BS is designed to clear windshield from 40" - 84" (1100-1200 mm) in height. They can power arms up to 39" (1000 mm) and blades up to 47" (1200 mm). Features two speeds, self parking, bulkhead mounting, stepless adjustable wiping arc from 40 to 90 degrees, double brass bearings, dual drive shaft and have a centre distance of 60mm. Includes instruction / installation manual.
Specifications
- Manufacturer: Exalto Wissermotor
- Model: 250 BS
- Part #: 2176.35
- Vendor: Cruisers Yachts
- Bulkhead Thickness: 2.5" (65mm)
- Torque : 50 Nm
- Power consumption : 30W
- Insulated Earth Return: Yes
- Voltage : 24 VDC
- Sweep: 40° - 90° stepless
- Max. arm length: 39" (1000 mm)
- Max blade size: 47" (1200 mm)
- Drive shaft sleeve: 0.8" (20 mm)
- Idler spindle / sleeve: 0.8" (20 mm)
- Pantograph arms: P10
- Centre Distance: 2.4" (60 mm)
